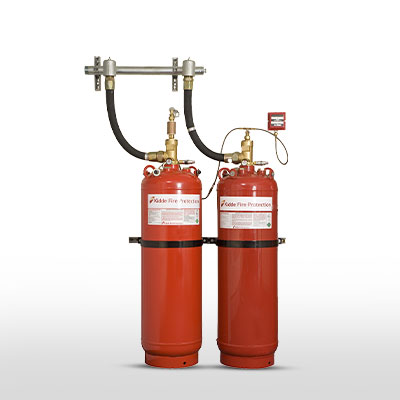

Fm200 System

Overview

• Agent: FM-200 (HFC-227ea) is a colorless, odorless, and electrically non-conductive gas. It is a clean agent, meaning it leaves no residue after discharge and does not require cleanup, making it ideal for protecting sensitive equipment and areas.
• Uses: Commonly used in data centers, telecommunication facilities, clean rooms, and other areas where electronic equipment is housed and traditional fire suppression methods (like water) would cause damage.

Features

1. Rapid Fire Suppression:

   • FM-200 extinguishes fire primarily by absorbing heat. It disrupts the fire triangle (fuel, heat, and oxygen) by removing the heat element.
   • Acts within 10 seconds of detection, which minimizes fire damage.

2. Safety:

   • Safe for use in occupied spaces at designed concentration levels.
   • Recognized by major safety and environmental regulatory bodies, including the U.S. EPA and NFPA.

3. Environmental Impact:

   • FM-200 has a zero ozone depletion potential (ODP).
   • It has a relatively short atmospheric lifetime compared to other chemical agents, which makes it a more environmentally friendly choice.

4. Design and Installation:

   • The system can be designed to fit a variety of room sizes and configurations.
   • Uses a network of pipes and nozzles to distribute the FM-200 agent throughout the protected area.
   • Modular in design, allowing for scalability and flexibility.

5. Maintenance and Inspection:

   • Regular maintenance and inspection are required to ensure the system is operational.
   • Components like cylinders, valves, and detection systems should be checked according to manufacturer recommendations and regulatory standards.

Applications

• Data Centers and Server Rooms: Protects sensitive equipment without damaging it.
• Telecommunications Facilities: Ensures the protection of communication equipment.
• Archives and Libraries: Preserves valuable documents and artifacts.
• Medical Facilities: Protects critical equipment without leaving residue.

Advantages

• Minimal Downtime: Quick suppression means less damage and shorter recovery times.
• No Residue: Leaves no residues, eliminating cleanup costs and damage.
• Safe for Equipment: Non-corrosive and electrically non-conductive, ensuring the safety of electronic equipment.

Installation Process

1. Risk Assessment: Identify and assess the specific fire risks of the protected area.
2. System Design: Design the system to meet the specific needs of the area, considering factors like room size, equipment layout, and airflow.
3. Installation: Install the network of pipes, nozzles, and FM-200 storage cylinders.
4. Commissioning: Test the system to ensure it operates correctly and effectively.
5. Maintenance: Establish a regular maintenance schedule to ensure ongoing reliability and compliance with standards.

The FM-200 system from Hi-Tech offers a reliable and effective solution for fire suppression in environments where water or other suppression methods would be detrimental.
